SAFETY GUARD FOR CHUCK OF LATHE IN POLYCARBONATE OR LAMINATED GLASS ON VERTICAL LIFTING ARM WITH MICROSWITCH - TYPE PT - Repar2

SAFETY GUARD FOR CHUCK OF LATHE IN POLYCARBONATE OR LAMINATED GLASS ON VERTICAL LIFTING ARM WITH MICROSWITCH - TYPE PT - Repar2

Enhance lathe safety with the SAFETY GUARD FOR CHUCK OF LATHE, featuring a polycarbonate or laminated glass shield on a vertical lifting arm with microswitch. Durable, adjustable, and CE certified.

SKU : 1PT300CM

698.33 € 698.33 EUR 698.33 € VAT Excluded

698.33 € VAT Excluded

Screen

This combination does not exist.

Add to cart Buy now

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

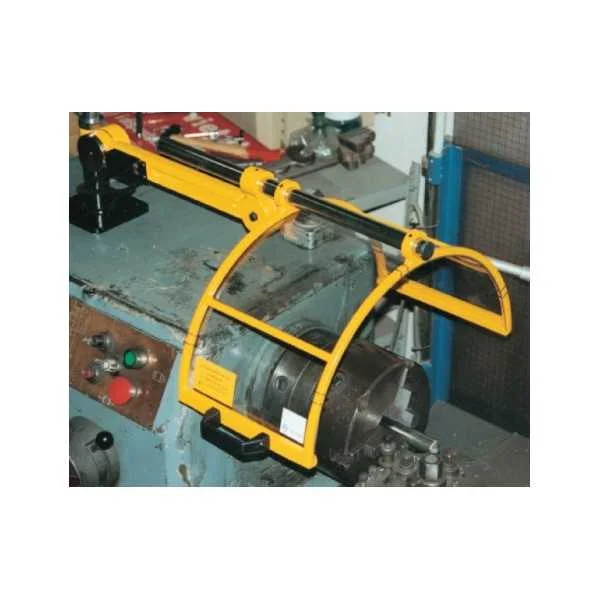

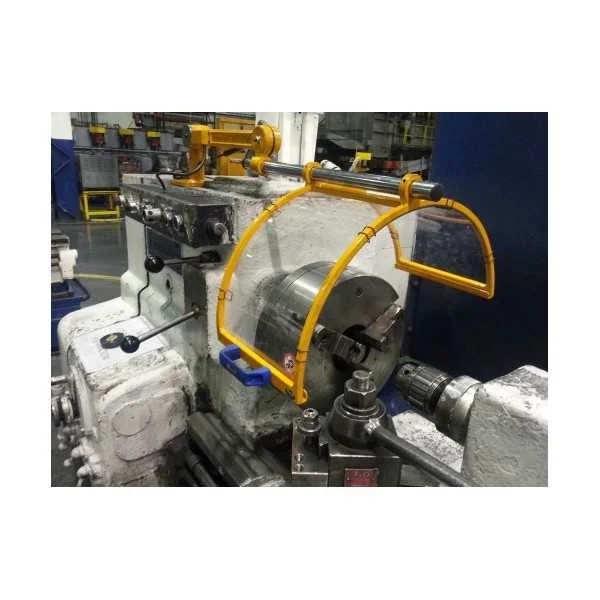

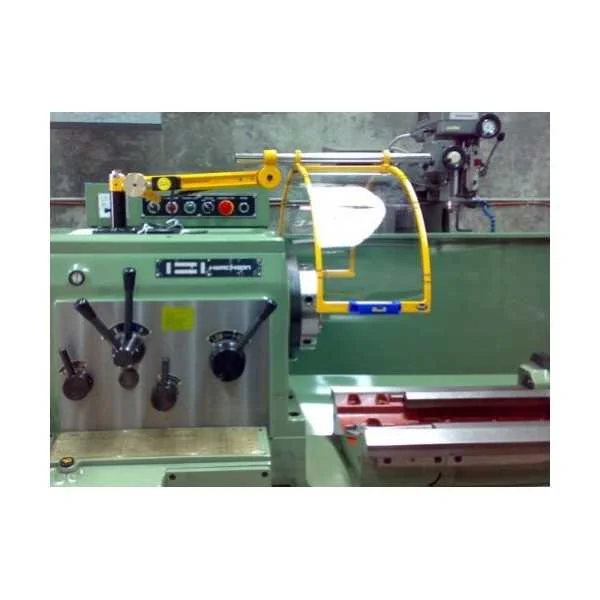

The SAFETY GUARD FOR CHUCK OF LATHE IN POLYCARBONATE OR LAMINATED GLASS ON VERTICAL LIFTING ARM WITH MICROSWITCH - TYPE PT, a top-tier safety solution for your lathe operations.

Manufactured by Repar2, this safety guard combines robust construction with advanced safety features to ensure maximum protection for operators. The polycarbonate or laminated glass shield provides a clear view of the workpiece while safeguarding against direct contact with the machine's chuck, coolant, and chips.

The vertical lifting arm with a microswitch adds an extra layer of safety by automatically shutting down the machine when the guard is opened.

Polycarbonate Lathe Chuck Guard: The polycarbonate shield is fully impact-resistant and scratch-free, offering high visibility and durability. It ensures that operators can safely monitor the machining process without risking exposure to hazardous elements.
Laminated Glass Lathe Guard: For those preferring a more robust option, the laminated glass shield provides enhanced resistance to impacts and abrasions. This material is ideal for heavy-duty applications where additional strength is required.

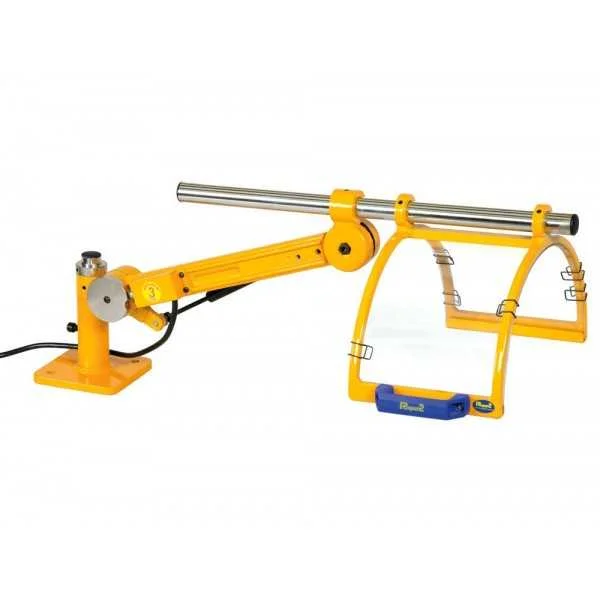

Vertical Lifting Arm for Lathe Guard: The guard is mounted on a vertical lifting arm equipped with a gas spring, allowing for smooth and effortless vertical displacement. This feature enables easy access to the chuck for adjustments or maintenance without compromising safety.
Lathe Chuck Guard with Microswitch: Safety is paramount with the integrated microswitch that shuts down the lathe as soon as the guard is lifted. This ensures that the machine operates only when the guard is securely in place, preventing accidental contact with moving parts.

Specification Table

Feature	Specification
Screen Width	240 mm standard (180 mm on request)
Mounting	Fixed head of the lathe
Screen Material	Polycarbonate or laminated glass
Available Diameters	300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 600 mm
Vertical Displacement	Gas spring-assisted
Safety Switch	Integrated microswitch
Certification	CE conformity certificate
